What Are Specifications of Tungsten Alloy Rod?

Specifications of tungsten alloy rod mainly include dimensions, surface conditions, grades (including density levels), and performance parameters. CTIA manufactures standard and customized tungsten alloy rods according to application requirements in counterweights, radiation shielding, aerospace components, and precision manufacturing.

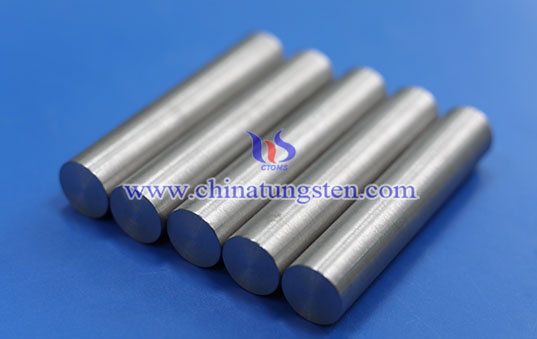

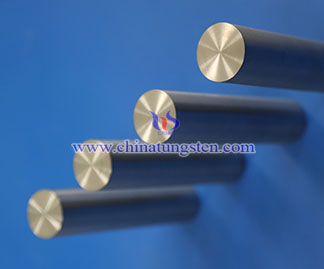

Specifications of CTIA’s Tungsten Alloy Rod

1. Dimensions of CTIA’s Tungsten Alloy Rod
(1) Diameter: 3–100 mm, with common sizes including Φ5 mm, Φ10 mm, Φ15 mm, Φ20 mm, Φ30 mm, Φ50 mm, Φ80 mm, and Φ100 mm; customized diameters are available according to requirements.
(2) Length: 200–1000 mm, with customized cutting available for different assembly and machining requirements.
(3) Tolerance: ±0.03 mm to ±0.1 mm, with higher dimensional accuracy achievable through precision grinding; length tolerance can be customized.

2. Surface Conditions of CTIA’s Tungsten Alloy Rod
CTIA offers different surface conditions according to machining and application requirements:
(1) Swaged: Strengthened through rotary swaging to improve material density and mechanical performance.
(2) Turned: Machined by turning to achieve smooth surfaces for general assembly applications.
(3) Ground: Precision ground to achieve higher dimensional accuracy and surface quality.
(4) Polished: Finished with reduced surface roughness for applications requiring high surface quality.

3. Grades and Density Specifications of CTIA’s Tungsten Alloy Rod
CTIA’s tungsten alloy rods mainly include W-Ni-Fe, W-Ni-Cu, and W-Ni-Fe-Mo series. Different tungsten contents and binder phase systems determine material density, mechanical properties, magnetic characteristics, and application performance.
(1) 90WNiFe / 90WNiCu Tungsten Alloy Rod
Contains approximately 90% tungsten with a density of about 17.0 g/cm³. 90WNiFe consists of a Ni-Fe binder phase, providing magnetic characteristics and good strength, while 90WNiCu consists of a Ni-Cu binder phase, offering non-magnetic properties for applications requiring low magnetic interference.
(2) 92.5WNiFe / 92.5WNiCu Tungsten Alloy Rod
Contains approximately 92.5% tungsten with a density of about 17.5 g/cm³. It provides a balance of high density, strength, toughness, and machinability, with 92.5WNiFe offering magnetic properties and 92.5WNiCu providing non-magnetic characteristics for counterweights, shielding components, and precision structures.
(3) 92.5WNiFeMo / 93WNiFeMo Tungsten Alloy Rod
Contains approximately 92.5%–93% tungsten with molybdenum (Mo) addition based on the W-Ni-Fe system. The Mo strengthening effect improves high-temperature strength, creep resistance, and structural stability for demanding applications requiring enhanced thermal performance.
(4) 95WNiFe / 95WNiCu Tungsten Alloy Rod
Contains approximately 95% tungsten with a density of about 18.0–18.1 g/cm³. It provides higher mass concentration capability and good mechanical performance, with 95WNiFe featuring magnetic properties and 95WNiCu offering non-magnetic characteristics.
(5) 97WNiFe Tungsten Alloy Rod
Contains approximately 97% tungsten with a density exceeding 18.5 g/cm³. It provides higher density, excellent mass concentration capability, and good dimensional stability for space-limited precision counterweights and functional components.

4. Main Performance Parameters of CTIA’s Tungsten Alloy Rod
Typical performance parameters include:
(1) Tensile strength: 700–1400 MPa
(2) Yield strength: 370–800 MPa
(3) Hardness: HRC 26–40
(4) Elongation: 2%–15%
(5) Coefficient of thermal expansion: 4.5×10⁻⁶/K
(6) Density: 16.5–18.8 g/cm³
CTIA’s tungsten alloy rods combine high density, high strength, low thermal expansion, and good impact resistance to meet the requirements of high-reliability structural components and precision parts.

CTIA GROUP has accumulated nearly 30 years of experience in tungsten alloy manufacturing, with production capabilities covering material preparation, precision machining, and surface finishing. CTIA’s tungsten alloy rods cover W-Ni-Fe, W-Ni-Cu, and W-Ni-Fe-Mo series and can be processed through swaging, turning, grinding, and polishing, with customized grades, dimensions, and surface conditions available for aerospace counterweights, radiation shielding, precision manufacturing, and advanced equipment applications.
