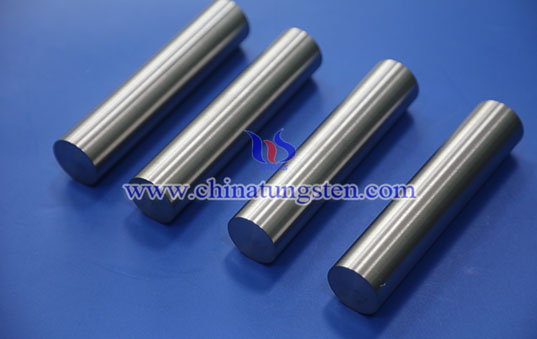

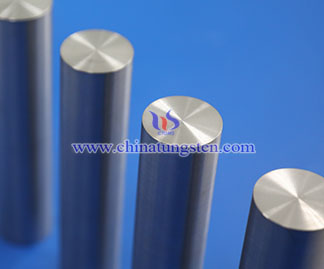

Tungsten Alloy Rod in Satellite Counterweight

Tungsten alloy rod is high density tungsten alloy material applied in satellite counterweight systems for precise mass distribution, center-of-gravity adjustment, and inertia control. The rod is available in W-Ni-Fe, W-Ni-Cu, and W-Ni-Fe-Mo alloy systems, combining the high density of tungsten with the mechanical strength, toughness, and machinability provided by different binder phases. CTIA’s tungsten alloy rod offers high mass concentration, dimensional stability, low thermal expansion, and reliable vacuum performance, enabling precision manufacturing of satellite balance weights, attitude control components, and inertial adjustment parts for communication satellites, remote sensing satellites, navigation satellites, and deep space exploration spacecraft.

1. Characteristics of CTIA’s Tungsten Alloy Rod in Satellite Counterweight
(1) High Density for Compact Satellite Design
A density of 16.5–18.8 g/cm³ enables high mass concentration within limited satellite space. Compared with traditional steel and copper materials, tungsten alloy rod provides higher mass at the same volume, reducing the size of counterweight components and optimizing structural layout.
(2) Excellent Dimensional Stability for Long-Term Space Operation
Low thermal expansion coefficient and stable physical properties maintain dimensional accuracy during launch vibration, high vacuum conditions, and orbital operation, ensuring consistent counterweight performance.
(3) High Strength for Launch and Mechanical Loads
High strength, hardness, and toughness enable tungsten alloy rod to withstand vibration, impact, and mechanical loads during satellite launch and operation, improving the reliability of counterweight components.
(4) Good Machinability for Precision Counterweight Components
Improved machinability compared with pure tungsten materials enables turning, milling, grinding, and other precision processes for satellite counterweight components with different dimensions and structures.
(5) Magnetic Selection for Different Satellite Systems
W-Ni-Fe magnetic grades and W-Ni-Cu non-magnetic grades are available to meet different satellite applications with specific magnetic environment requirements.

2. Applications of CTIA’s Tungsten Alloy Rod in Satellite Counterweight
(1) Attitude Control and Momentum Management
Used in reaction wheel counterweights, momentum wheel balance components, and magnetic torquer counterweights to adjust satellite inertia characteristics and improve attitude control accuracy.
(2) Structural Balance and Satellite Center-of-Gravity Adjustment
Used in satellite body counterweights, solar panel deployment mechanism counterweights, and antenna pointing mechanism balance components to optimize mass distribution.
(3) Payload and Instrument Counterweights
Used in optical payloads, radar antennas, and scientific instruments for precise mass compensation, improving pointing accuracy and reducing vibration effects.
(4) Deep Space Probes and Small Satellites
Used for mass adjustment in CubeSats, small satellites, and deep space probes to achieve precise mass control.
(5) Ground Testing and Simulation
Used as temporary or permanent counterweights during satellite assembly, vibration testing, and center-of-gravity measurement.

3. Specifications of CTIA’s Tungsten Alloy Rod in Satellite Counterweight
(1) Material Types: W-Ni-Fe, W-Ni-Cu, and W-Ni-Fe-Mo alloy systems
(2) Tungsten Content: 90%–97%
(3) Density: 16.5–18.8 g/cm³
(4) Dimensions: Diameter 0.5–30 mm, length 5–300 mm, customizable
(5) Surface Conditions: Ground, polished, and other conditions available

CTIA GROUP has specialized in tungsten alloy manufacturing for nearly 30 years and supplies tungsten alloy rods in various grades, dimensions, and processing conditions. CTIA provides 90WNiFe, 92.5WNiFe, 95WNiFe, 97WNiFe, 90WNiCu, 92.5WNiCu, 95WNiCu, 92.5WNiFeMo, and 93WNiFeMo tungsten alloy rods with customized solutions. Stable material properties and precision machining capabilities enable CTIA’s tungsten alloy rods to meet application requirements in satellite attitude control, momentum management, structural balancing, and spacecraft precision counterweight systems.

For any inquiry, please contact tungsten alloy manufacturer: CTIA GROUP

Email: sales@chinatungsten.com

Tel: 0086 592 5129696 / 0086 592 5129595

Website: tungsten-alloy.com
