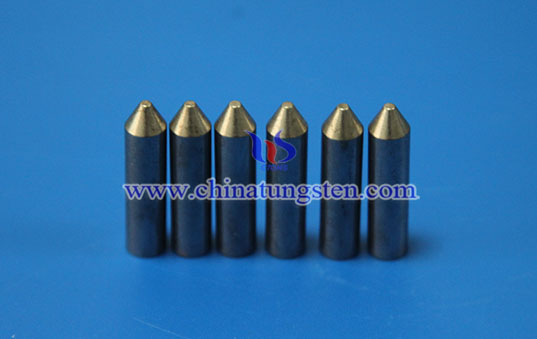

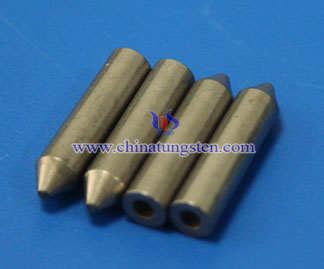

Tungsten Alloy Rod in EDM Electrodes

Tungsten alloy rod in EDM electrodes refers to a high-performance electrode material used in Electrical Discharge Machining (EDM), mainly manufactured from tungsten copper alloy (W-Cu). CTIA’s tungsten copper alloy electrode combines tungsten’s high melting point and excellent erosion resistance with copper’s superior electrical conductivity and thermal conductivity. It maintains stable electrode geometry during pulse discharge, reduces electrode wear, and is widely used in precision molds, cemented carbides, superalloys, and complex structural component machining.

1. Characteristics of CTIA’s Tungsten Alloy Rod in EDM Electrodes
Electrical discharge machining removes materials through the thermal effect generated by pulsed discharge between the electrode and workpiece, producing instantaneous high temperatures of 8000–12000°C locally. Therefore, EDM electrodes require excellent erosion resistance, electrical and thermal conductivity, and dimensional stability. CTIA’s tungsten copper alloy electrode is a commonly used electrode material in precision EDM applications as it features the following characteristics:
(1) Low Electrode Wear
Features a high melting point and excellent arc erosion resistance from the tungsten phase, minimizing electrode wear during continuous discharge operations to preserve electrode shape and enhance machining accuracy.
(2) Superior Electrical and Thermal Conductivity
Ensures stable discharge processes and rapid heat dissipation through the copper phase, preventing thermal buildup within the electrode.
(3) High Dimensional Stability
Maintains precise dimensions under high-temperature discharge conditions due to a low coefficient of thermal expansion, meeting strict precision EDM requirements.
(4) Suitability for Difficult-to-Machine Materials
Demonstrates excellent erosion resistance and machining stability, making it ideal for EDM processing of hard-to-machine materials such as cemented carbides, die steels, and superalloys.
(5) Excellent Machinability
Offers favorable mechanical processing adaptability, allowing fabrication into various EDM electrode geometries via turning, grinding to satisfy precision discharge machining demands.

2. Applications of CTIA’s Tungsten Alloy Rod in EDM Electrodes
(1) Precision Mold Machining
Used for machining mold cavities and cores in injection molds, stamping molds, and die-casting molds, meeting requirements for complex structures, high dimensional accuracy, and good surface quality.
(2) Cemented Carbide Machining
Suitable for difficult-to-machine materials such as cemented carbide components, cutting tools, and nozzles, reducing electrode wear and improving discharge machining stability.
(3) Micro-Structure Machining
Deployed in EDM processing of micro-holes, narrow slots, precision contours, and intricate geometries, meeting the demands of small-scale electrode machining.
(4) High-Precision Component Machining
Applied to the machining of high-hardness components in aerospace, medical equipment, and precision machinery fields, meeting high-precision manufacturing requirements.

3. Specifications of CTIA’s Tungsten Alloy Rod in EDM Electrodes
(1) Grades: W70Cu, W75Cu, W80Cu, etc.
(2) Dimensions: Diameter 2–100 mm, length 50–1000 mm, customizable

CTIA GROUP leverages nearly 30 years of manufacturing experience in tungsten alloys, possessing comprehensive capabilities in tungsten-based composite powder preparation, compact sintering, and precision machining. By strictly controlling chemical composition, microstructure, and dimensional precision, CTIA provides stable and reliable tungsten copper alloy electrodes. It supplies customized services across various grades, dimensions, and surface conditions tailored to EDM equipment specifications, electrode geometries, and processing requirements.
